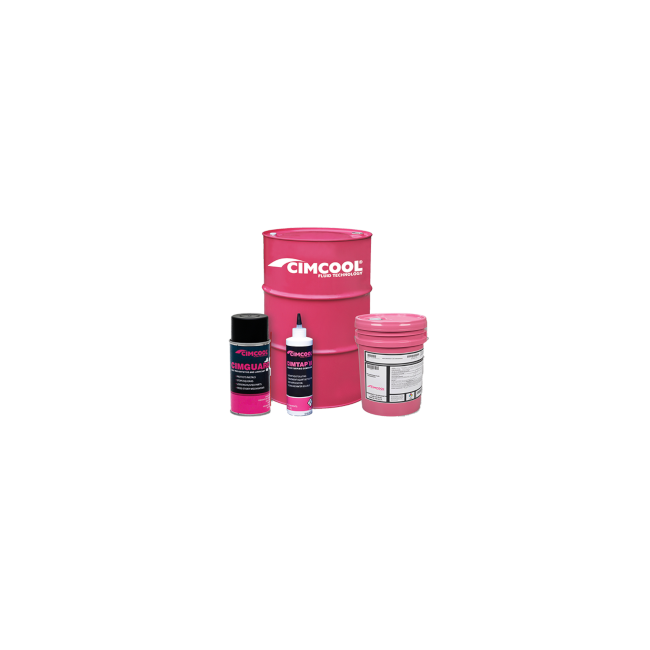

CIMTAP II (12 - 16oz bottles)

LIQUID TAPPING COMPOUND



DESCRIPTION



CIMTAP II a water soluble general purpose tapping compound.



APPLICATIONS



CIMTAP II can be used on steels, cast iron, stainless steel alloys, nickel alloys, aluminum, copper and brass. Not recommended for magnesium or magnesium alloys.



FEATURES & BENEFITS



MAXIMUM TAP LIFE:



Good lubricity eliminates chip welding, tap burning and resultant tap breakage.



ACCURATE THREADS:



Produces accurate threads on a wide variety of metals.



MAXIMUM PRODUCTION:



Works best at high tapping speeds.



QUICK, EASY APPLICATION:



CIMTAP II is a liquid and can be applied from the squirt bottle, either during production or when the tap is stationary.



CLEAN:



Readily soluble in water – Does not leave deposits on the machine – Blind threaded holes can be cleaned with water or an air hose.



RESIDUE:



Does not harden to a dry solid residue – Eliminates subsequent operations to remove residue



RECOMMENDED STARTING DILUTIONS



FOR INDUSTRIAL USE ONLY



Use without diluting (100%)



TYPICAL PHYSICAL AND CHEMICAL PROPERTIES



Physical State	Liquid
Appearance and Odor	Pink Hazy/Chemical
Solubility in water	100% miscible
Weight, lb/gal, 60°F (15.6 °C)	8.6
Viscosity (SUS) @ 100°F	> 1500
Flash Point /Sp.Gr./Boiling Point	SEE MSDS
pH Concentrate	9.3
pH Mix 100%, Typical Operating	9.3
Total Chlorine/Chloride, wt%	3.0/<50ppm
Total Sulfur, wt%	0.6
Silicones	None



HANDLING and STORAGE



Protect from freezing. Inside storage is recommended.



SAFETY DATA SHEET



Available at www.cimcool.com



For additional information refer to its OSHA MSDS, website or contact your local CIMCOOL TECHNICAL SPECIALIST OR DISTRICT MANAGER, or you may contact CIMCOOL® Technical Services at 1-513-458-8199.



Limitation of Liability: Under no circumstances, shall we or any affiliate of ours have any liability whatsoever for loss of use, or for any indirect or consequential damages. Minor formulation changes or normal variations in the manufacture of this product may cause slight variances in the data presented on this sheet.
